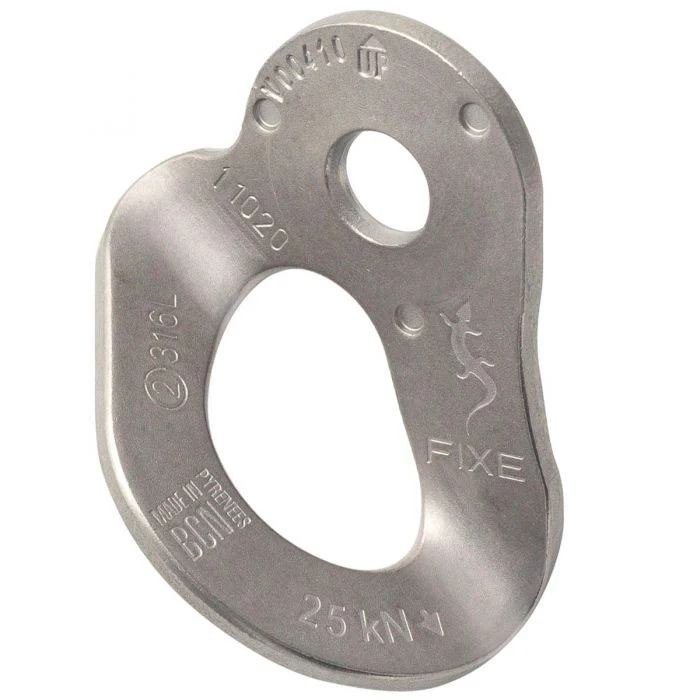

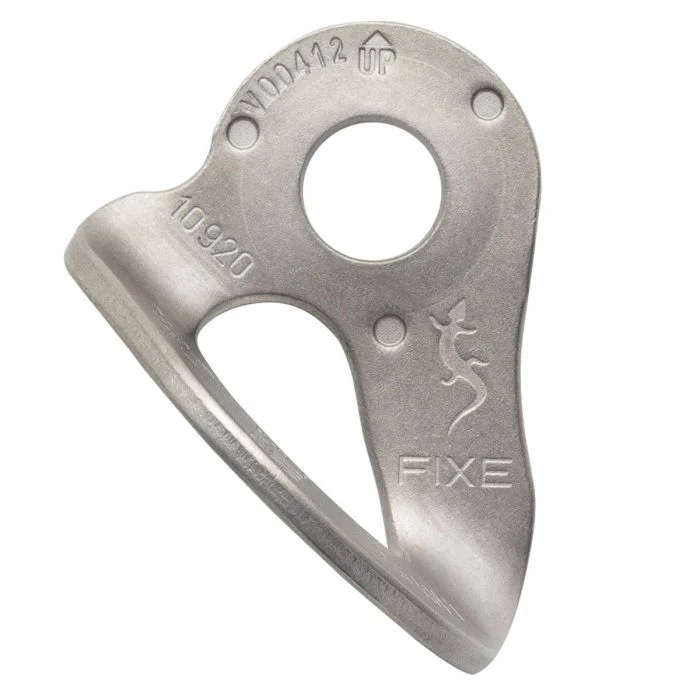

316 SS Bolt Hanger
New Technologies:
Rounded inner edge for less wear on carabiners
Geometry directs the carabiner for optimal orientation on overhangs.
Conical Washer
Anti-rotation dimples are now smaller and spaced further apart
Optimized surface area contact with the rock
Features:
Minimum Breaking strength: 25 kN / 5620 lbs
CE Certified: EN795:2012; EN959:2018
Diameter: 3/8in and 1/2in.
Weight: 57g (3/8ā), 56g (1/2ā)
316L Stainless Steel
Made in Barcelona, Spain
316L Stainless Steel:Ā
Perfect for all outdoor uses except in the most corrosive environments where Titanium is the only long lasting option. 316L steel is a marine-grade stainless steel with exceptional corrosion resistance.
Conical Washer:
The rim of the bolt anchor hole protrudes slightly into a conical shape, away from the wall. The act of pulling the bolt anchor will generate a spring effect that provides constant pressure against the wall, multiplying the strength of the torque. It also provides more consistency when torque tightening the bolt.
Lighter:
With a thickness of 3.5mm (previously 4mm) we have reduced the weight of the hanger by 12.5% while still being one of the most robust hangers on the market.
Anti-rotation Pins:
Textures on the hanger help to reduce the likelihood of the hanger spinning.
Geometry:
When placed on a roof, the carabiner will be routed so that it never comes into contact with the projecting head of the bolt anchor.
